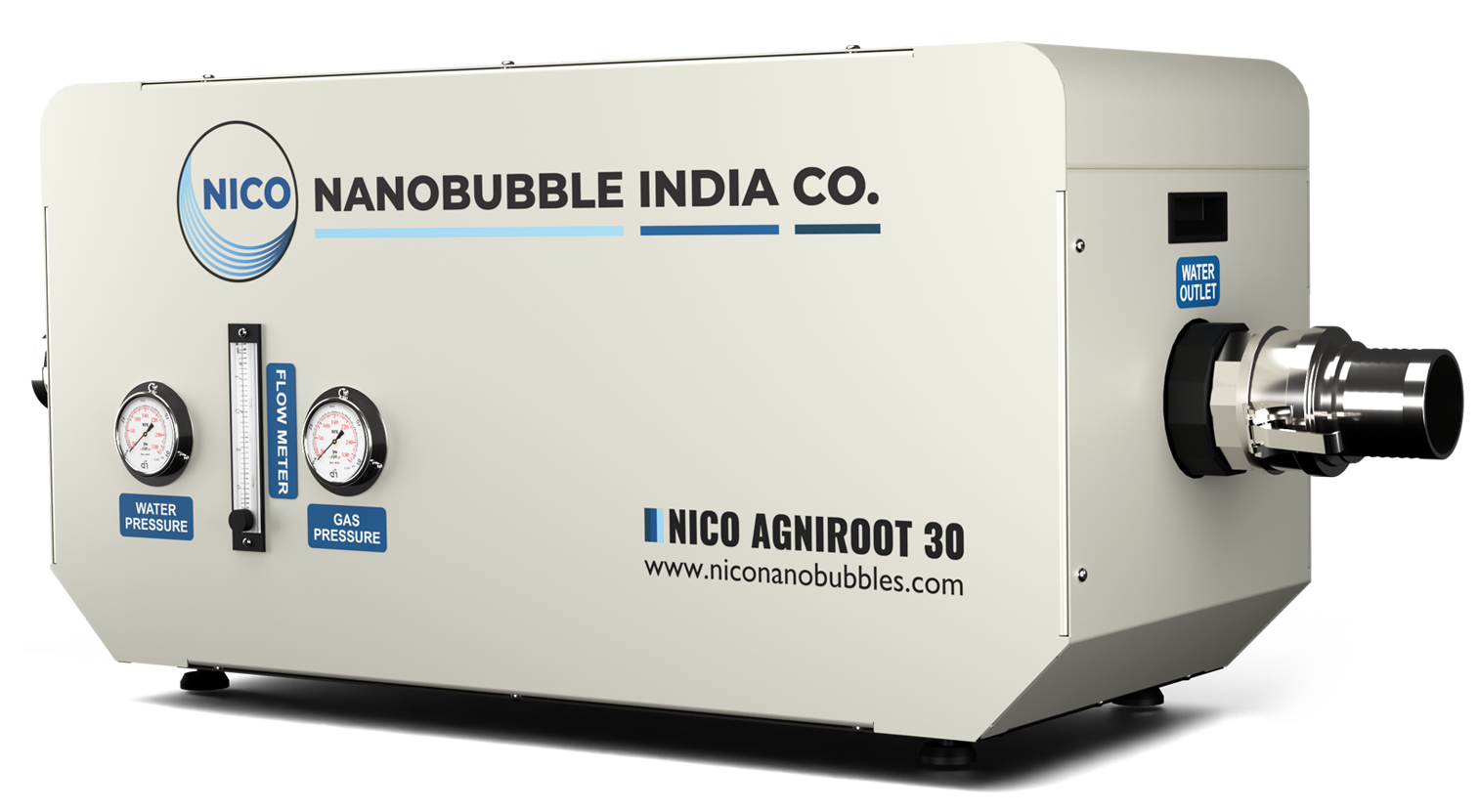

The NICO AGNIROOT Nanobubble System enhances irrigation efficiency and plant health by enriching water with ultra-fine oxygen nanobubbles.
Power-free and integrated into existing line pressure, it ensures effortless deployment without additional energy input.
Enhancing every stage of modern agriculture with oxygen-enriched
nanobubble technology.
Increases oxygen levels in soil, promoting stronger roots and beneficial microbial activity.
Boosts plant growth and root health through higher dissolved oxygen in nutrient solutions.
Enhances water quality and supports balanced growth of both plants and aquatic life.
Enhances turf health, density, and color by improving root oxygenation and nutrient uptake.
Accelerates germination rates and improves seedling vigor with oxygen-rich water.
Boosts plant growth, flowering, and yield through improved oxygen availability and nutrient absorption.
Measurable improvements across your entire agricultural irrigation and crop
production system.
Improves root respiration, accelerates germination, and ensures stronger plant establishment.
Higher biogas production efficiency with effective reduction of hydrogen sulfide (H₂S) in the system.
Enhances soil microbial balance while improving irrigation efficiency and water utilization.
Reduces biofilm formation and supports precision and controlled agriculture practices.
Compare models to find the right AGNIROOT system for your operational requirements.
| Parameter | Unit | NICO AGNIROOT 0.05 | NICO AGNIROOT 01 | NICO AGNIROOT 05 | NICO AGNIROOT 10 | NICO AGNIROOT 30 | NICO AGNIROOT 100 |
|---|---|---|---|---|---|---|---|
| Flow Rate | m3/hr | 0.054 | 1.35 | 10 | 10 | 100 | 100 |
| LPH | 54 | 1350 | 5000 | 10000 | 30000 | 100000 | |
| System Pressure | bar | 2 | 2-3 | 2-3 | 2-3 | 2-3 | 2-3 |
| Nanobubble Size | nm | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 |
| Zeta potential | mV | up to -43 mV | up to -43 mV | up to -43 mV | up to -43 mV | up to -43 mV | up to -43 mV |
| Gas usage | Air, Oxygen | Air, Oxygen, Ozone | |||||
| Oxygen Flow Rate | LPM | 0.7 | 1.5 | 7 | 14 | 40 | 133 |
| Oxygen Pressure | PSI | >7 | >7 | >7 | >7 | >7 | >14.5 |
| Ozone Flow Rate | GPH | NA | 3-5 | 16 | 70 | 200 | 600 |
| Oxygen Pressure | PSI | NA | < 1.1-1.2 | < 1.1-1.2 | < 1.1-1.2 | < 1.1-1.2 | < 1.1-1.2 |
| Suction Line Size | inch | NA | 1.5 | 1.5 | 2.0 | 3.0 | 4.0 |
| Discharge Line Size | inch | NA | 1.0 | 1.0 | 2.0 | 3.0 | 4.0 |
The system enriches irrigation water with oxygen nanobubbles, which enhance root-zone oxygen availability. This improves root respiration, nutrient uptake, and microbial activity, resulting in healthier plants and increased crop yield.
Yes, the NICO AGNIROOT system is designed for seamless integration with existing setups such as drip irrigation, hydroponics, aeroponics, and precision farming systems. It operates power-free using existing line pressure, requiring minimal modifications and ensuring easy adoption across both modern and traditional farming practices.
Yes, improved oxygenation enhances nutrient absorption efficiency and strengthens plant health, which can reduce the dependency on fertilizers and pesticides. It also helps control biofilm formation in irrigation lines, improving overall system hygiene.
