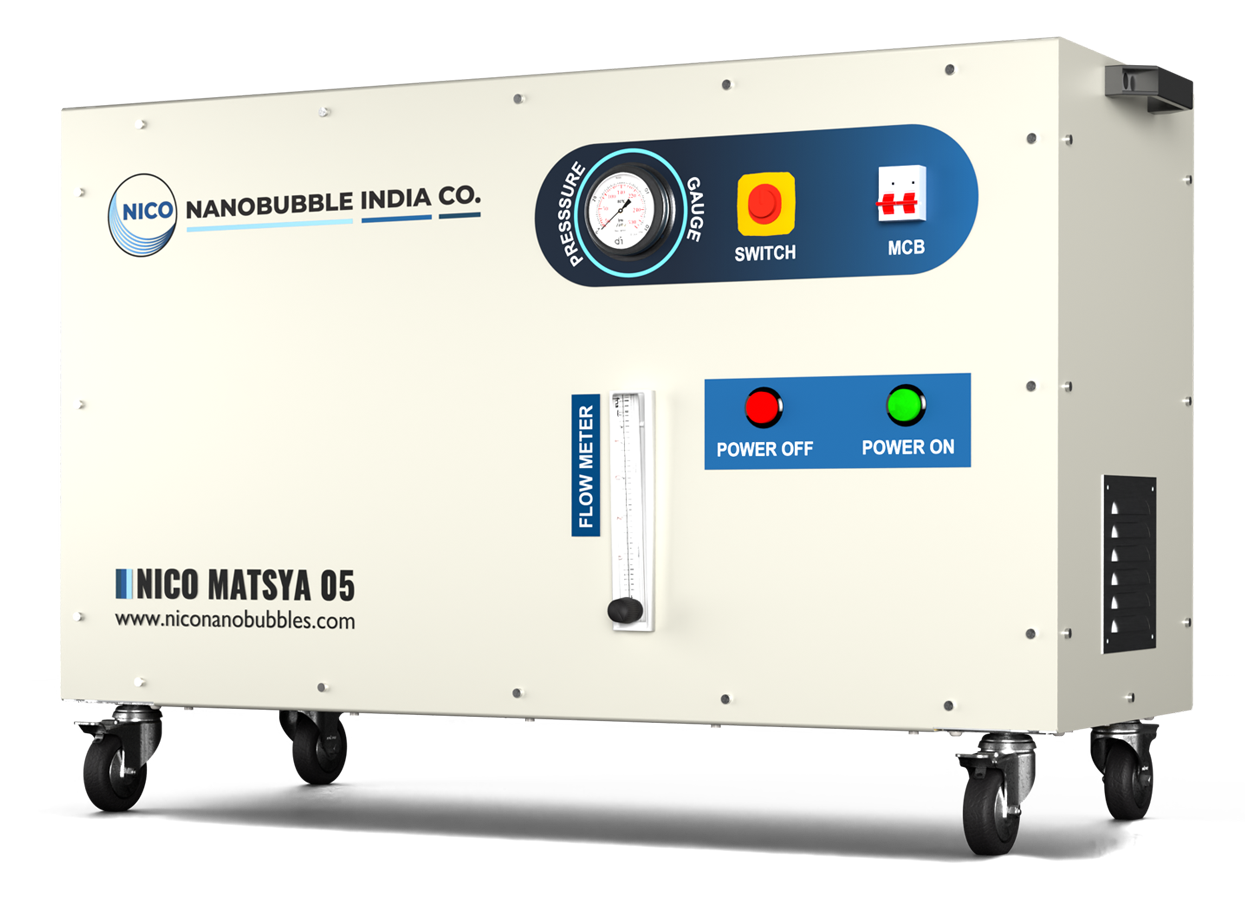

The NICO MATSYA Nanobubble System enhances dissolved oxygen and water quality by generating
ultra-fine nanobubbles that provide long-lasting oxygen distribution.
This supports healthier fish and shrimp, improves feed conversion, and maintains stable conditions in
high-density systems.
Enhancing every stage of modern aquaculture with oxygen-enriched
nanobubble technology.
Enhances dissolved oxygen levels to support healthier fish growth and survival.
Improves larval health and survival rates through stable, oxygen-rich water conditions.
Maintains optimal water quality and oxygen balance for efficient system performance.
Supports beneficial microbial activity while improving oxygen availability in dense cultures.
Enables higher stocking densities by ensuring consistent oxygen distribution and reduced stress.
Preserves freshness and vitality by maintaining stable, oxygenated water conditions.
Measurable improvements in aquaculture performance, water quality, and
system efficiency.
Rapidly increases dissolved oxygen with uniform distribution across ponds and tanks.
Supports better fish and shrimp health, survival rates, and feed conversion performance.
Reduces ammonia, organic load, odor, and improves overall water clarity.
Minimizes stress during transport and enables efficient intensive aquaculture systems.
Compare models to find the right MATSYA system for your aquaculture requirements.
| Parameter | Unit | NICO MATSYA 01 | NICO MATSYA 05 | NICO MATSYA 10 | NICO MATSYA 30 | NICO MATSYA 100 | |
|---|---|---|---|---|---|---|---|
| Flow Rate | m3/hr | 1.35 | 5 | 10 | 30 | 100 | |
| LPH | 1350 | 5000 | 10000 | 30000 | 100000 | ||
| System Pressure | bar | 2 | 2-3 | 2-3 | 2-3 | 2-3 | |
| Nanobubble Size | nm | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 | |
| Nanobubble Concentration | million/ml | 100-250 | 300-700 | 60-90 | 100-211 | 40-300 | |
| Zeta potential | mV | up to -43 mV | up to -43 mV | up to -43 mV | up to -43 mV | up to -43 mV | |
| Gas usage | Air, Oxygen | Air, Oxygen, Ozone | |||||
| Oxygen Flow Rate | LPM | 1.5 | 7 | 14 | 40 | 133 | |
| Oxygen Pressure | PSI | >7 | >7 | >7 | >7 | >14.5 | |
| Ozone Flow Rate | GPH | 3-5 | 16 | 70 | 200 | 600 | |
| Oxygen Pressure | PSI | < 1.1-1.2 | < 1.1-1.2 | < 1.1-1.2 | < 1.1-1.2 | < 1.1-1.2 | |
| Suction Line Size | inch | 1.5 | 1.5 | 2.0 | 3.0 | 4.0 | |
| Discharge Line Size | inch | 1.0 | 1.0 | 2.0 | 3.0 | 4.0 | |
*NICO MATSYA 20, 50, 250, 500, 1000 systems available, with configurable specifications based on application requirements.
The system increases dissolved oxygen using ultra-fine nanobubbles that remain stable in water, ensuring continuous oxygen supply. This improves fish and shrimp health, enhances feed conversion, and supports higher survival rates.
Yes, it is designed for easy integration with ponds, hatcheries, RAS, biofloc systems, and transport tanks without major infrastructure changes.
Absolutely. The system maintains stable oxygen levels and improves water quality, making it ideal for intensive and high-density aquaculture environments.
